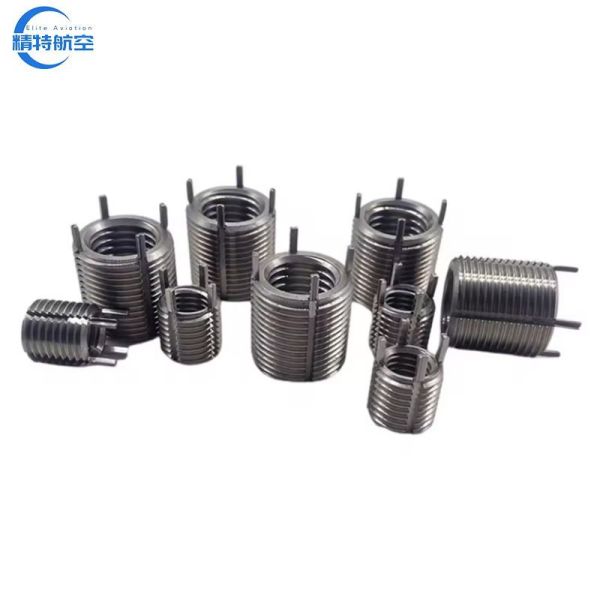

Stainless Steel 303 Self Cutting Key Locking Threaded Inserts M8
Premium Material: Stainless Steel 303
Secure Packaging: Plastic Bag + Carton Case
Innovative Design: Keylocking Thread Inserts are robust and feature internal and external threading with keys attached at the top.
Reliable Installation: Once the insert is screwed into the parent material, the locking keys are driven down into the tapped threads, creating a strong mechanical lock to prevent rotation due to vibration or torsion.
Unmatched Performance of Keylocking Thread Inserts Threaded inserts are essential in the repair and construction of workholders. Here's why key inserts are the go-to solution for manufacturers:
Versatility: Ideal for reinforcing weaker thread materials like aluminum and magnesium.
Durability: Reliable under demanding wear and high vibration conditions.
Adaptability: Available in a wide range of metric and inch sizes to suit your specific application.
Types of Thread Inserts Heavy Duty Key Inserts Featuring a thick, heavy-duty thread wall, suitable for most applications.
Thinwall Key Inserts Designed with a smaller OD thread size for use in tight spaces with acceptable pull-out strength.
Solid Key Inserts These inserts have a solid base, perfect for relocating drilled or tapped holes.
Small Series M2-M12 threaded inserts with 2 key locks.
Metric type DATA,Heavy duty series
| No. | Specification Data | Installation |
Type | Stainless steel | Carbon steel | 6H | 6g | Length | Key No. | Tap Drill | Thread tap |
| Internal thread | External thread | Drill bit | Tap depth | Thread tap |
| Heavy duty | SUS- M4-M8 | C.S- M4-M8 | M4*0.7 | M8*1.25 | 8 | 2 | 6.9 | 9.5 | M8*1.25 |
| SUS- M5-M10 | C.S- M5-M10 | M5*0.8 | M10*1.25 | 10 | 2 | 8.7 | 12.5 | M10*1.25 |
| SUS- M6-M12 | C.S- M6-M12 | M6*1.0 | M12*1.25 | 12 | 2 | 10.7 | 14.5 | M12*1.25 |
| SUS- M8-M14 | C.S- M8-M14 | M8*1.25 | M14*1.5 | 14 | 4 | 12.7 | 16.5 | M14*1.5 |
| SUS- M10-M16 | C.S- M10-M16 | M10*1.5 | M16*1.5 | 16 | 4 | 14.7 | 18.5 | M16*1.5 |
| SUS- M12-M18 | C.S- M12-M18 | M12*1.75 | M18*1.5 | 18 | 4 | 16.7 | 20.5 | M18*1.5 |
| SUS- M14-M20 | C.S- M14-M20 | M14*2.0 | M20*1.5 | 20 | 4 | 18.7 | 22.5 | M20*1.5 |
| SUS- M16-M22 | C.S- M16-M22 | M16*2.0 | M22*1.5 | 22 | 4 | 20.5 | 24.5 | M22*1.5 |
| SUS- M18-M24 | C.S- M18-M24 | M18*1.5 | M24*1.5 | 24 | 4 | 22.5 | 26.5 | M24*1.5 |
| SUS- M20-M30 | C.S- M20-M30 | M20*2.5 | M30*2.0 | 30 | 4 | 28 | 34.5 | M30*2.0 |
| SUS- M22-M32 | C.S- M22-M32 | M22*1.5 | M32*2.0 | 32 | 4 | 30 | 36.5 | M32*2.0 |
| SUS- M24-M33 | C.S- M24-M33 | M24*3.0 | M33*2.0 | 33 | 4 | 31 | 37.5 | M33*2.0 |
| SUS- M30-M40 | C.S- M30-M40 | M30*3.5 | M40*3.0 | 40 | 4 | 37 | 44.8 | M40*3.0 |
Package: Our products are secured in plastic bags and outer carton cases.
We reinforce the cases onto pallets to prevent damage during transportation. Delivery Time:Stocked goods are dispatched the same day an order is received. Typically, delivery is within 3-7 working days. Certifications
lSO:9001 2008 System Approved for Quality Assurance
MTC testing,Hardness tester,CCD Optical System
ROHS Certificate
IATF16949 Quality Management System
Q1: Are you trading company or manufacturer?
A1: We are factory loacted in Xinxiang City,Henan Province of China.
Q2: What products do you offer?
A2: Our main products are water filter,hydraulic oil filter, vacuum pump filters, filter cartridge, air compressor filter elements as well as accessories.
Q3: Do you provide samples? Is it free?
A3: Free samples can be supplied and the freight is paid by clients. This charge will be subtracted in your future order.
Q4: What is your payment terms?
A4: Payment<3000USD,100% payment in advance.
Payment>3000USD,30%T/T in advance,the balance 70% paid after inspection and before shipment.
Q5: What's your after sales service?
A5: Elite Aviation's goods have one year guarantee time and during this time if there is any quality questions, free replacement service is supplied.
Q6:How do you ship the goods?
A6:According to your order quantity, it is usually by sea,air or express etc.
Company Profile
Elite Aviation Manufacturing Co., Ltd is a professional supplier of thread inserts filter elements and metal products. Since its establishment, ELITE has always adhered to the production and business philosophy of "quality first, customer first", and is committed to providing cost-effective fastener products and fastening system solutions for various industries.
Now, our main products include thread inserts and filters two series. Thread inserts are tangless thread inserts, wire inserts with tails, self tapping inserts, keylocking inserts and their supporting tools. Filters are sintered mesh filter element, corrugated filter element, wire-wound filter element, bag filters, etc. Products are widely used in fields such as communication electronics, aviation, aerospace, rail transit, ships, medical treatment, industrial equipment. Through the continuous efforts of ELITE AVIATION people, products have been widely used in industries such as aviation, aerospace, high-speed rail, large locomotives, automotive manufacturing, power, machinery, as well as high-voltage switchgear, etc.
ELITE AVIATION, to create a global brand of Chinese wire thread inserts and filter elements.
